EDGEWATER 245 CC SPECS

SPECS

Length    24'6" | 7.5m
Beam    8'6" | 2.6m
Draft (Boat Only)    21" | 53.3cm
Boat Weight (approx)    3500lbs | 1588kg
Weight Capacity    3400lbs | 1542kg
Person Capacity    11
Person Weight    1815lbs | 823.3kg
Fuel Capacity    140gal | 530L
Transom Height    Single-30” or
Twin-25”
Max Power    400hp | 261kw
Cockpit Depth    29" | 73cm
Cockpit Area    89sq.ft. | 8.2m2
Approx. Length Boat/Trailer    31' | 9.4m
Bridge Clearance w/out Top    6'4" | 1.8m
Bridge Clearance w/T-Top    8'6" | 2.6m
Foam Floatation    Unsinkable/Level245CC schematics
STANDARD FEATURESArrow

About SPI Technology Video
CONSTRUCTION

SPI Single Piece Infusion
Single Piece Infusion (SPI) Structural System
Limited Lifetime Structural Hull Warranty
NMMA, ABYC & CE Certified
Self Bailing Non-Skid Decks
NO WOOD All Composite Construction
Closed-Cell Foam Flotation

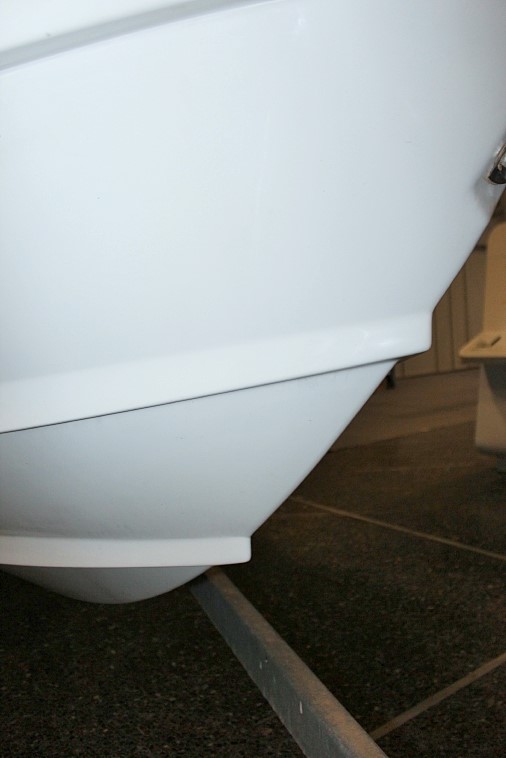

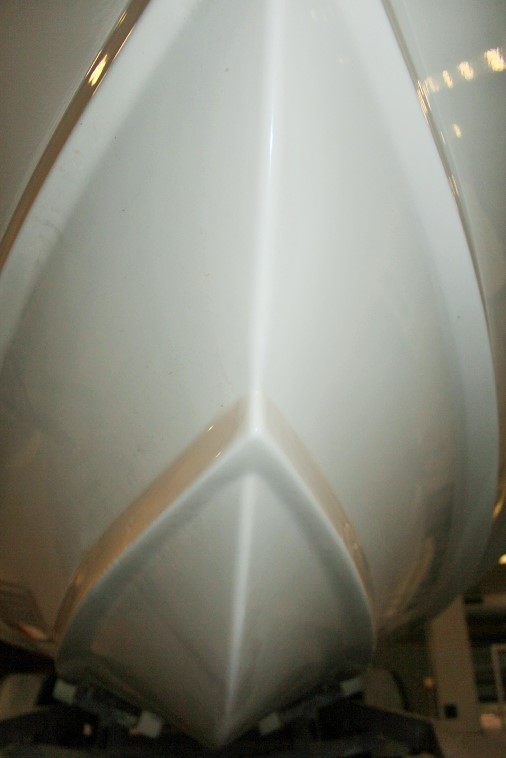

Variable Deadrise Deep V Hull
High Density Composite Transom
White Gelcoat Hull Color
245CC Hardware
HARDWARE

Stainless Steel Bow and Stern Eyes (3)
Welded 316L Stainless Steel Recessed Bow Rail
Stainless Steel Gunwale Mounted Rod Holders (4)
8" Stainless Steel Cleats (6)
Removable Armstrong Transom Boarding Ladder
Heavy Duty White Rubrail w/ Black Insert

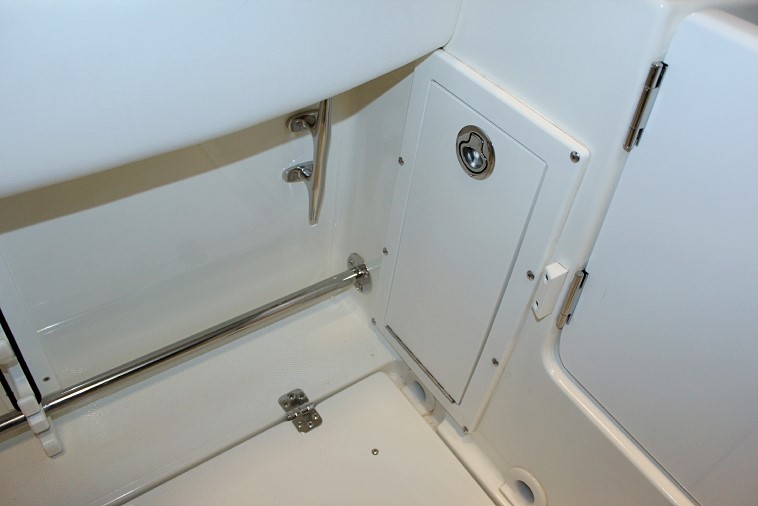

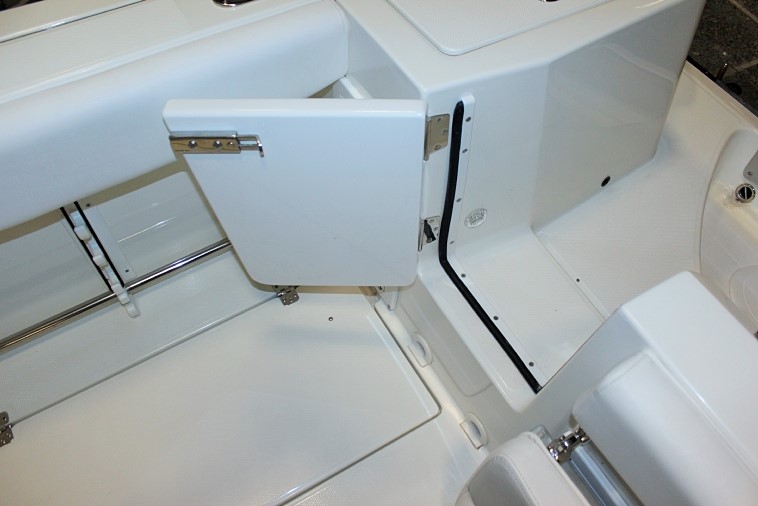

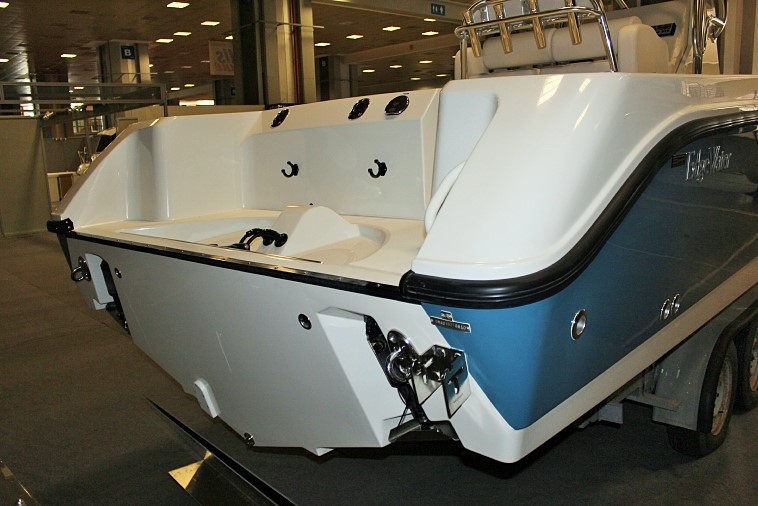

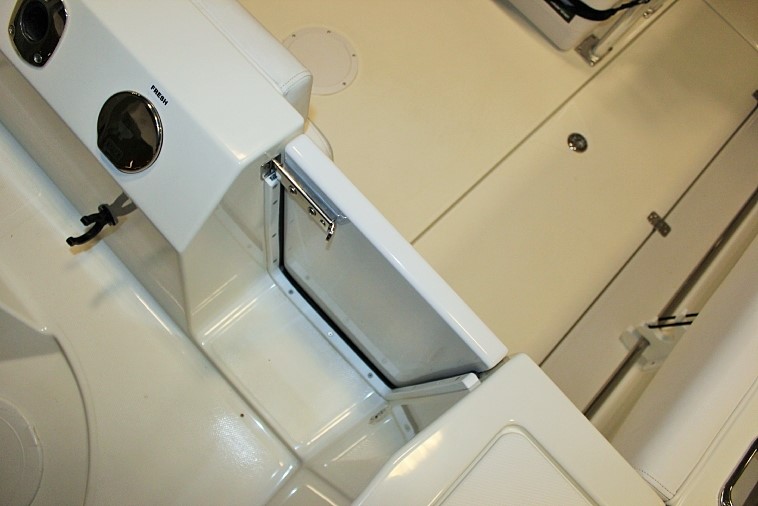

Walk-thru Transom Door w/ SS Latch

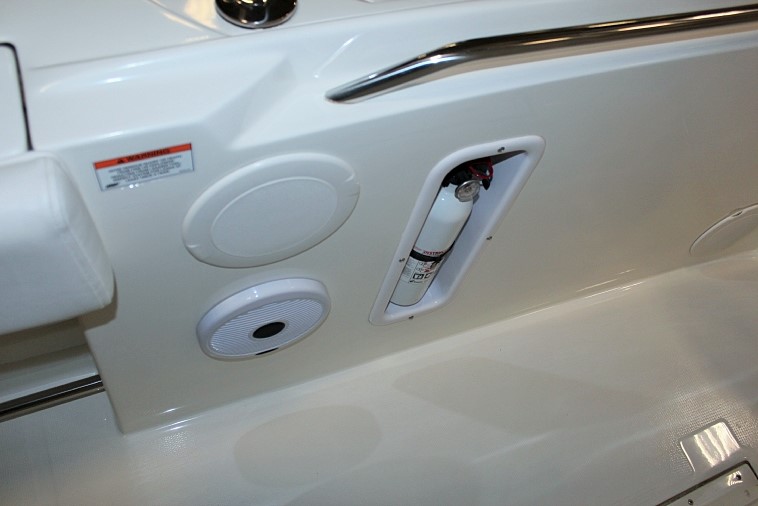

Fire Extinguishers (2)

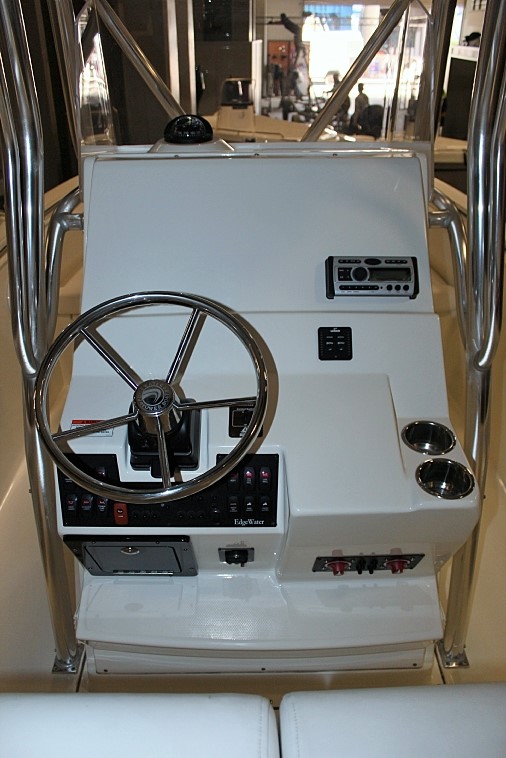

245CC Console & Top
CONSOLE & TOP

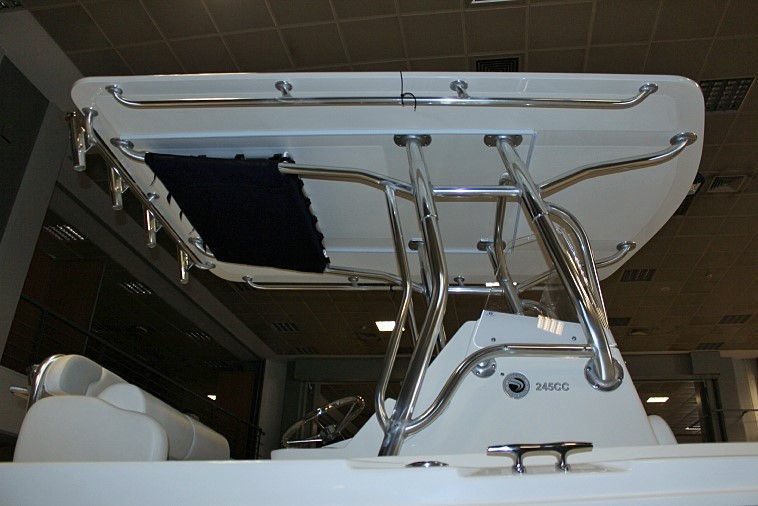

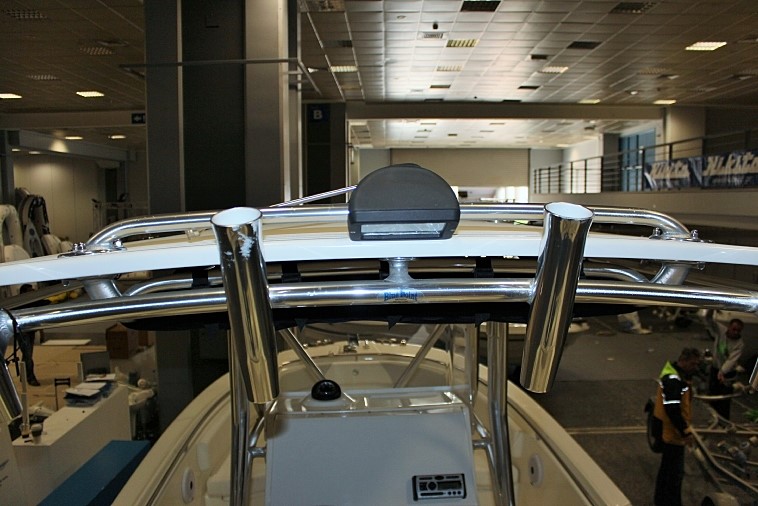

Fiberglass Hardtop w/ Rod Holders (4), LED Spreader Lights (2) & PFD Storage Bag

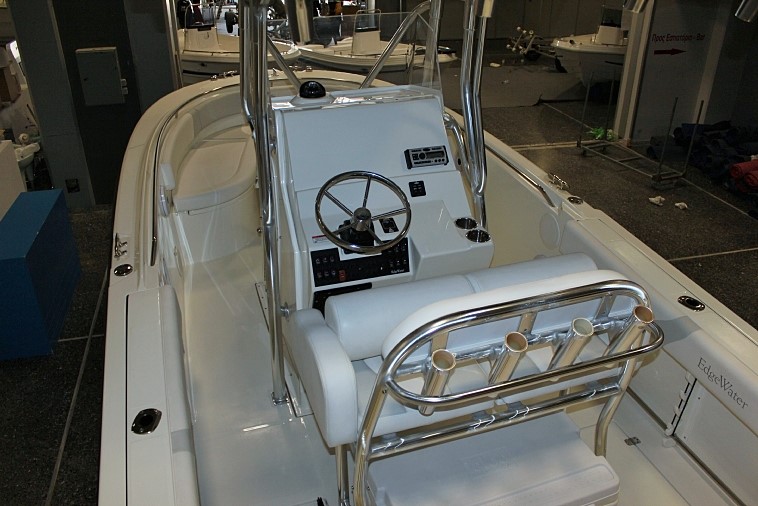

Walk-in Console w/ Fiberglass Liner
3/8" Clear Acrylic Windshield
Deluxe Stainless Steel Steering Wheel w/ Power Knob
Hydraulic Seastar® Steering w/ Tilt Helm

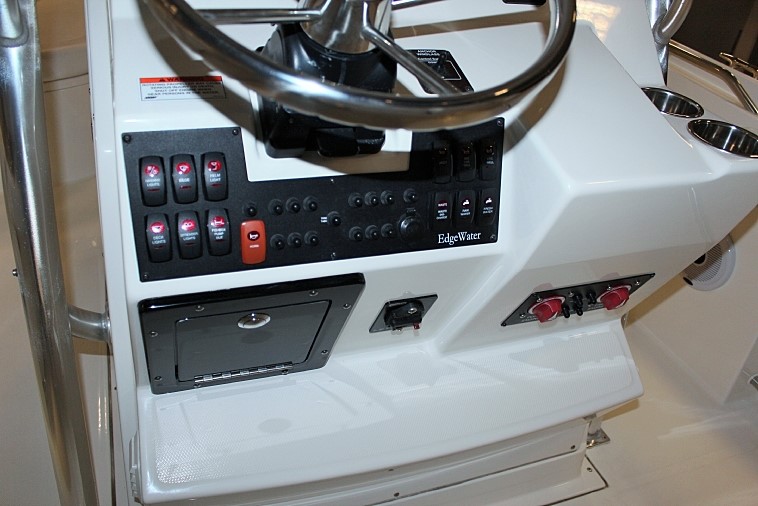

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet
Console Mounted Porta-Potti
Ritchie Compass
Stainless Steel Drink Holders on Console (2)
Stainless Steel Cockpit Toe Rails (2)
Raw Water Washdown Outlet
Fresh Water Shower w/ 19 Gallon Reservoir
245CC Electrical System
ELECTRICAL SYSTEM

LED Cockpit/Livewell Lighting
LED Navigation Lights
Underwater Blue LED Lights (2)
1250 GPH Auto/Manual Bilge Pump (1)
Waterproof Electrical Connectors & Tin Plated Copper Wiring
Battery Selector Switch & Wiring for Dual Batteries

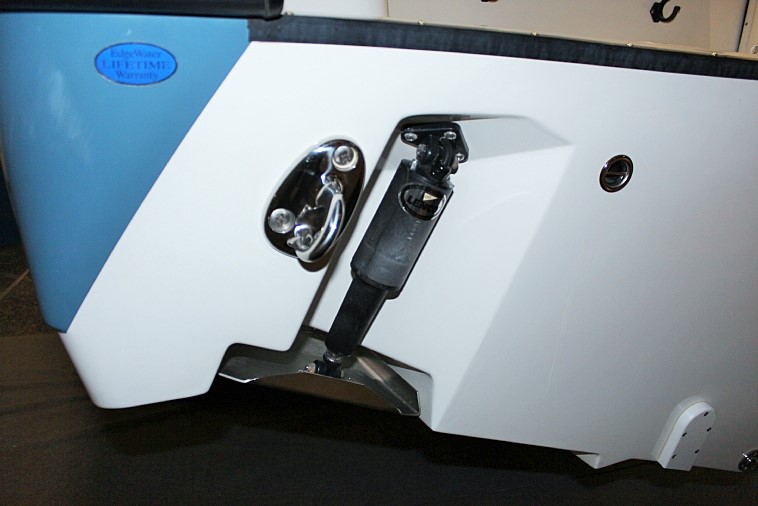

Lenco® Recessed Electric Trim Tabs w/ Indicators
245CC Seating & Storage
SEATING / STORAGE

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

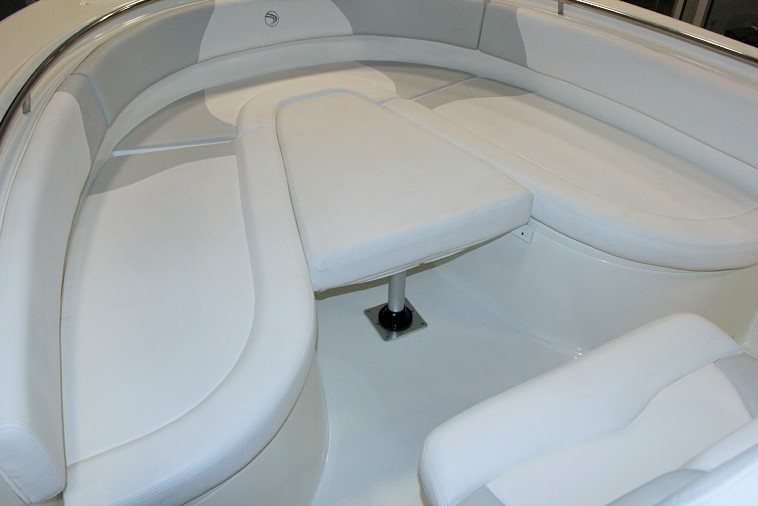

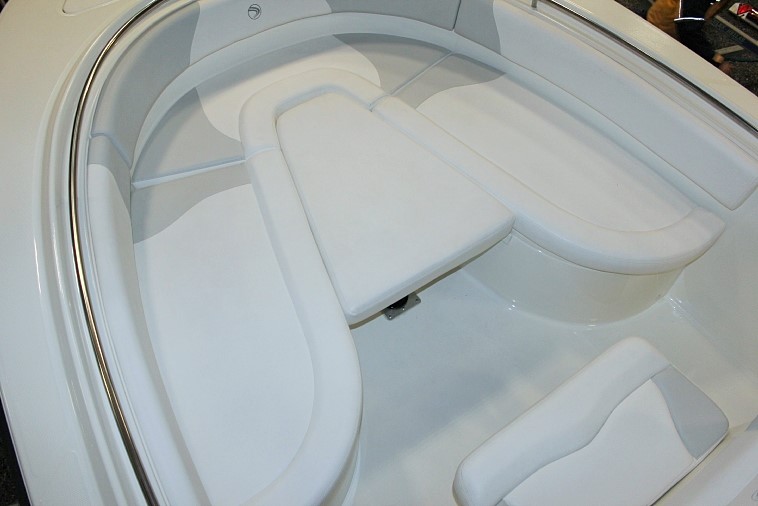

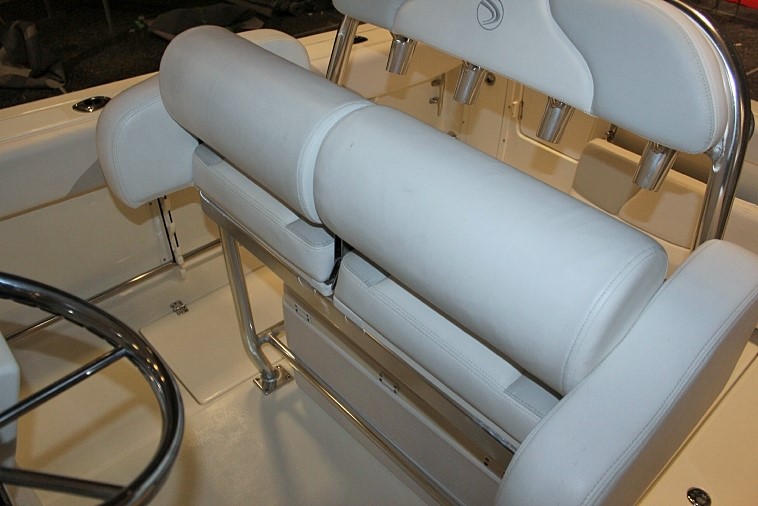

U-Shaped Bow Lounge w/ Backrest Bolster Cushions

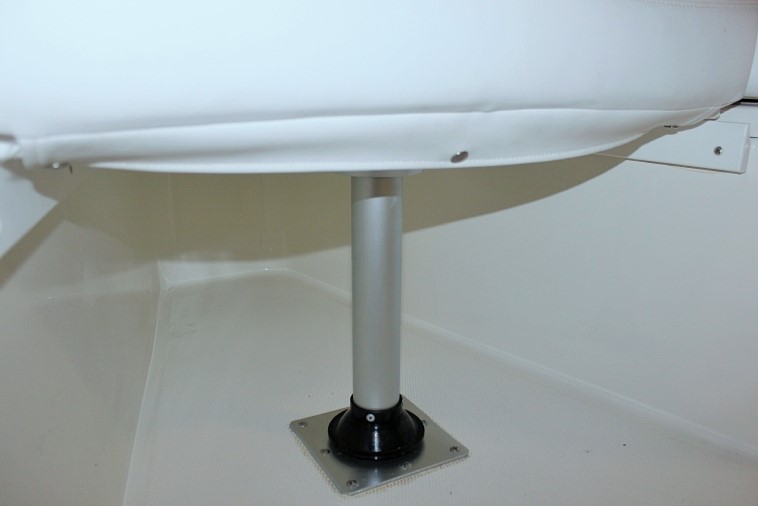

Bow Filler w/ Cushions and Table Leg

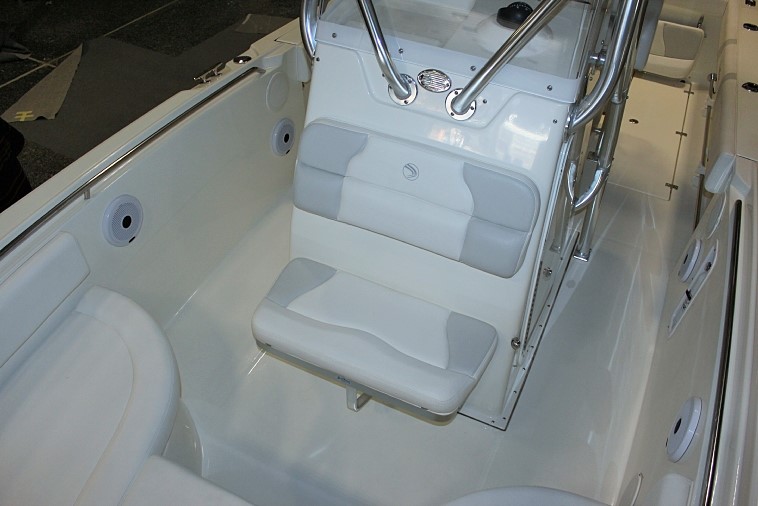

Folding Aluminum Seat in Front of Console w/ Backrest

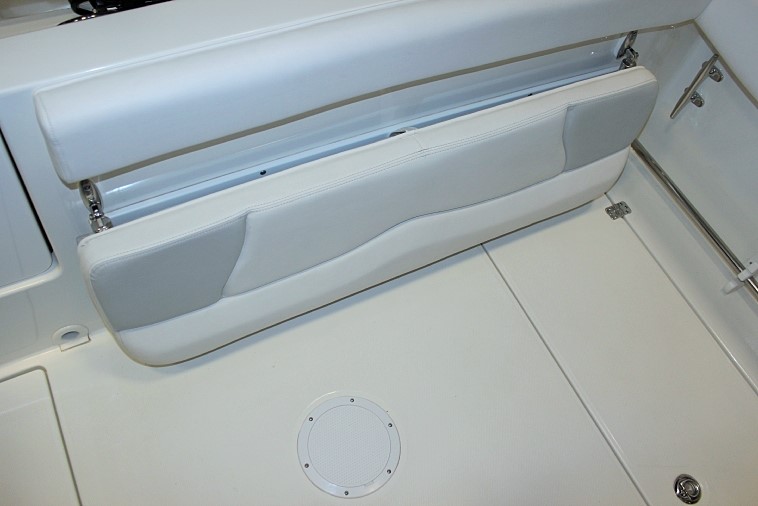

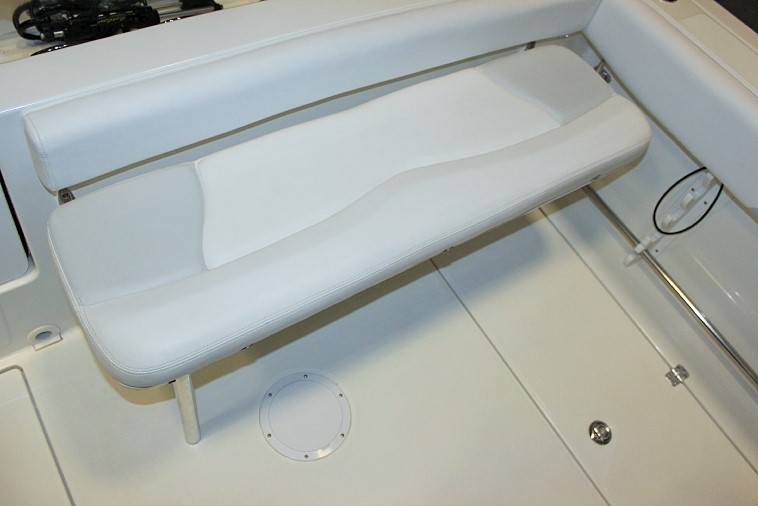

Folding Removable Stern Seat
28 Gallon Transom Baitwell

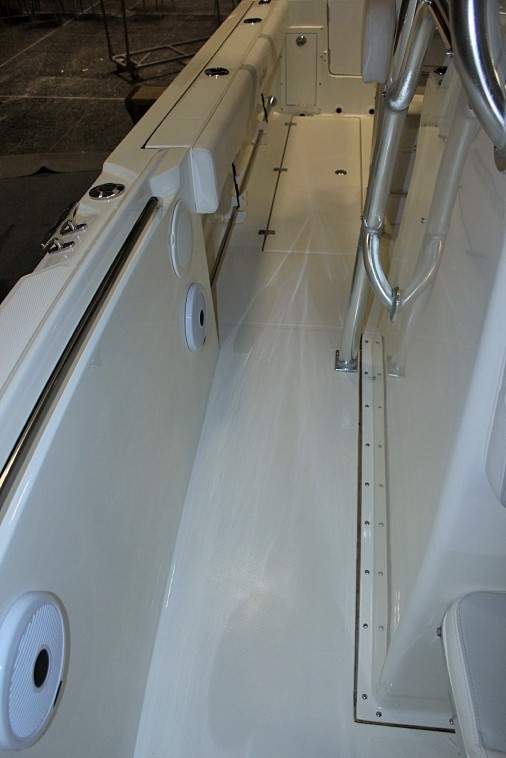

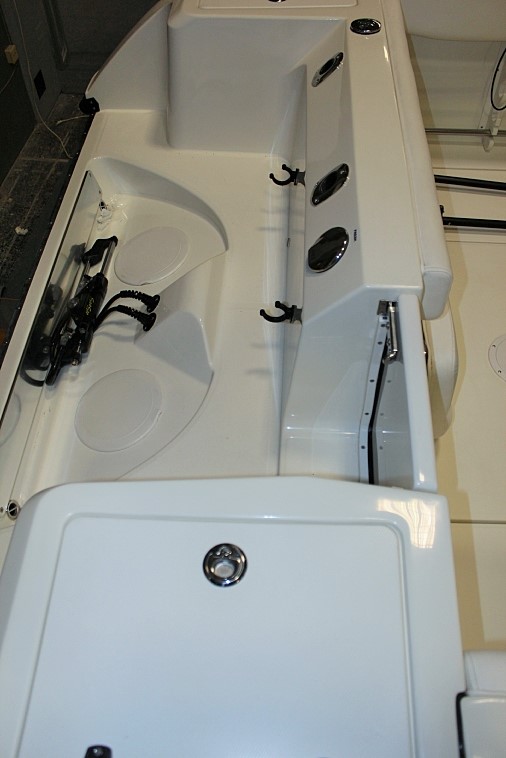

Under Gunwale Rod Racks

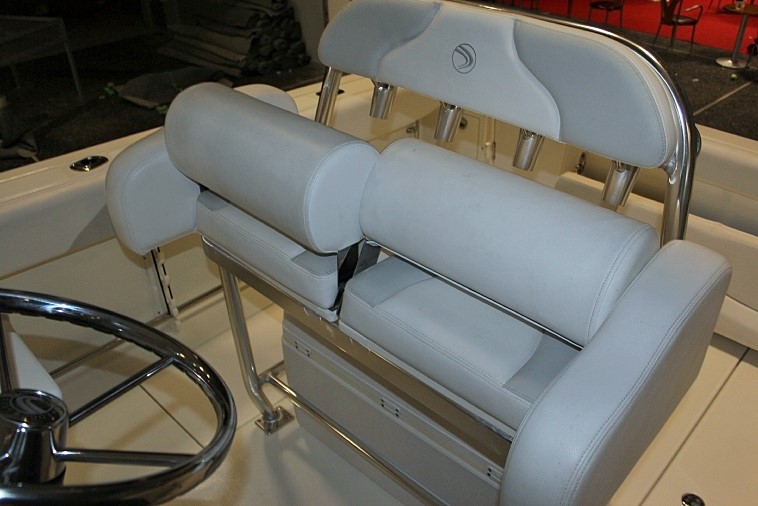

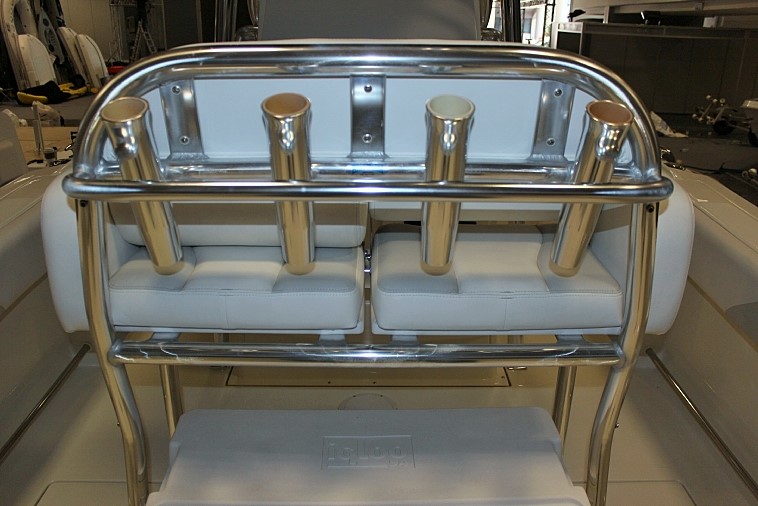

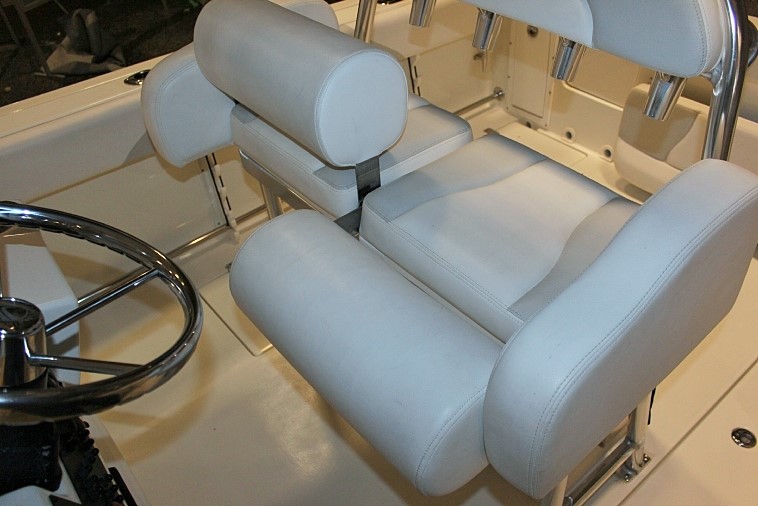

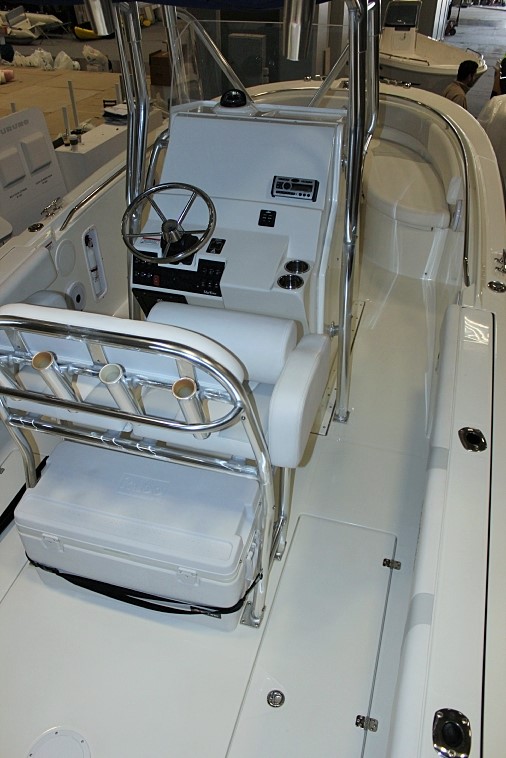

Aluminum Leaning Post w/ Backrest, Rod Holders (4), 94QT Cooler

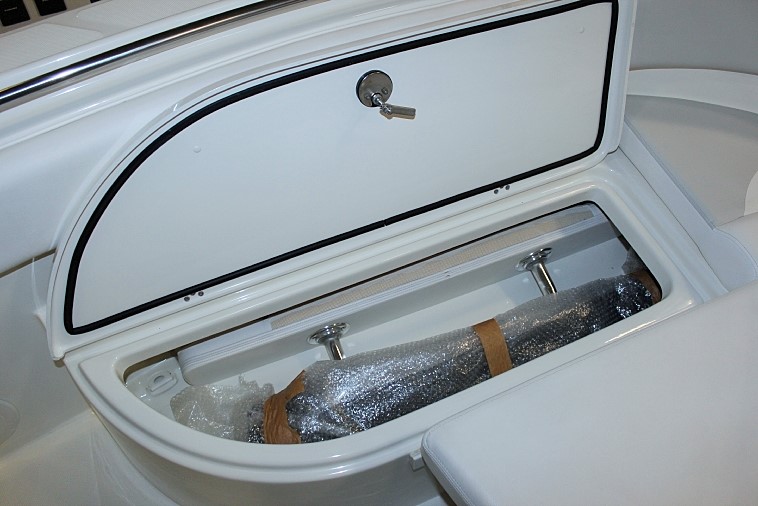

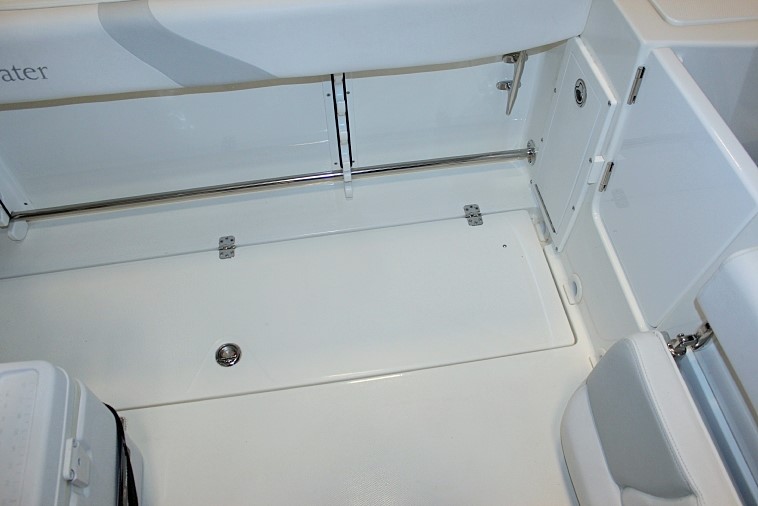

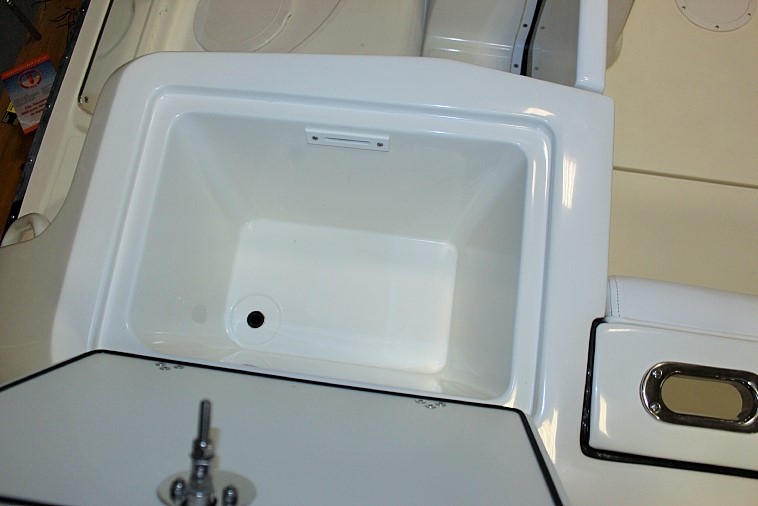

Insulated Bow Storage/Fishbox w/ Overboard Drain

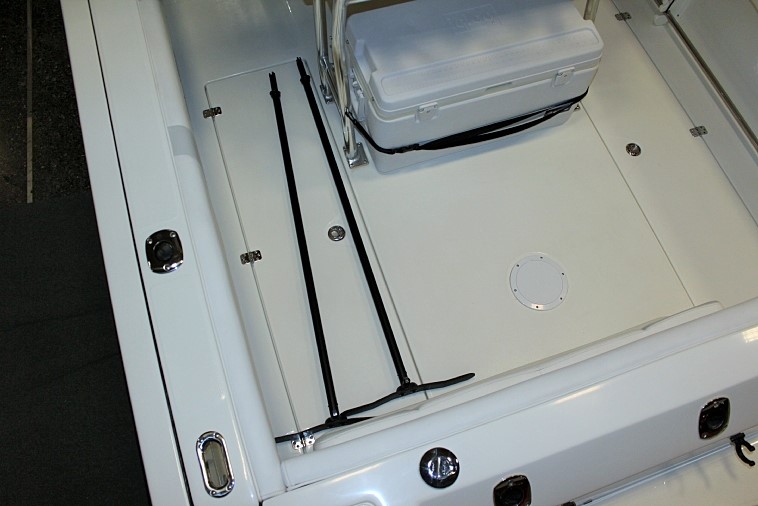

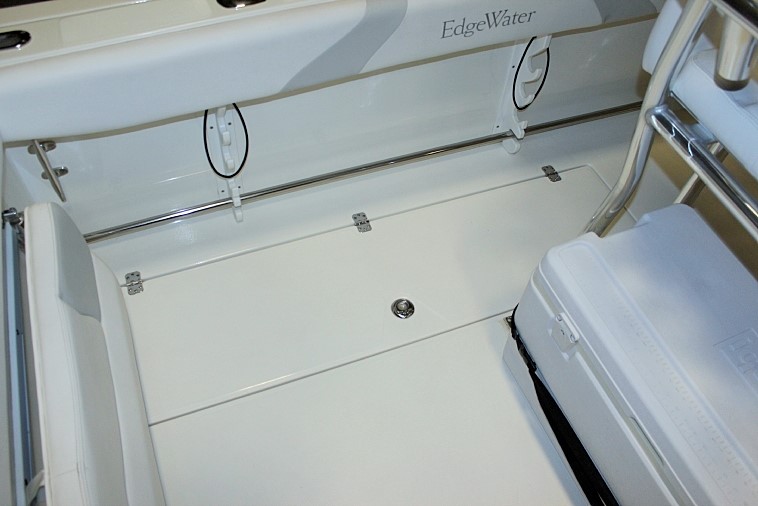

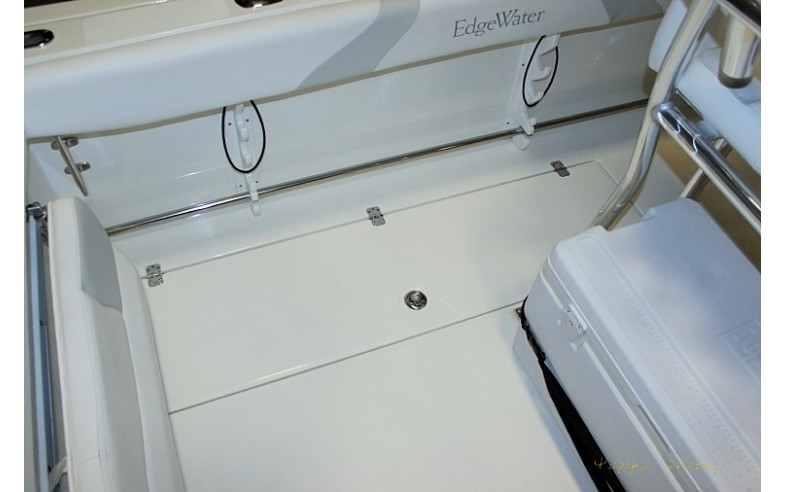

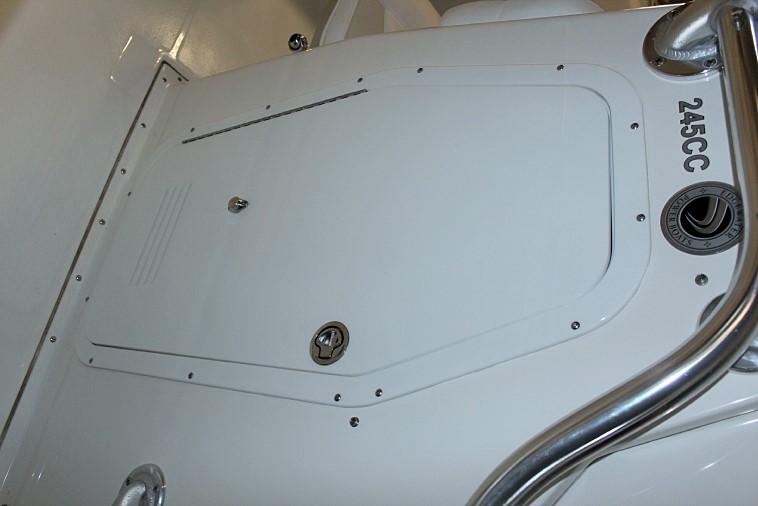

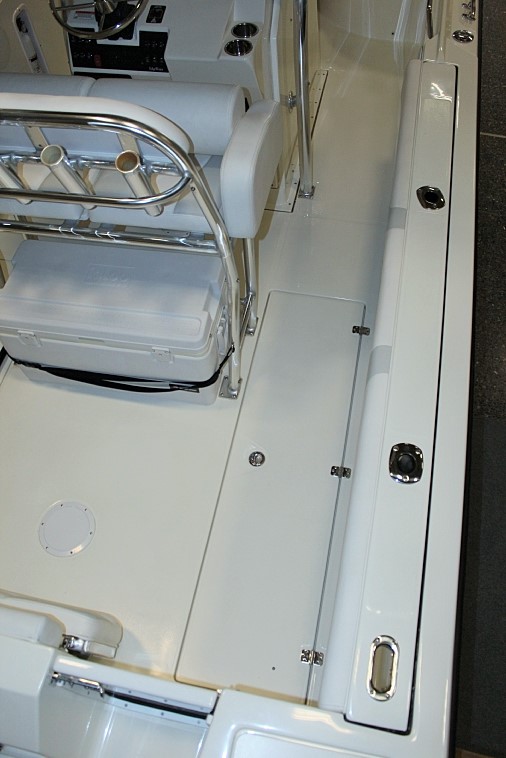

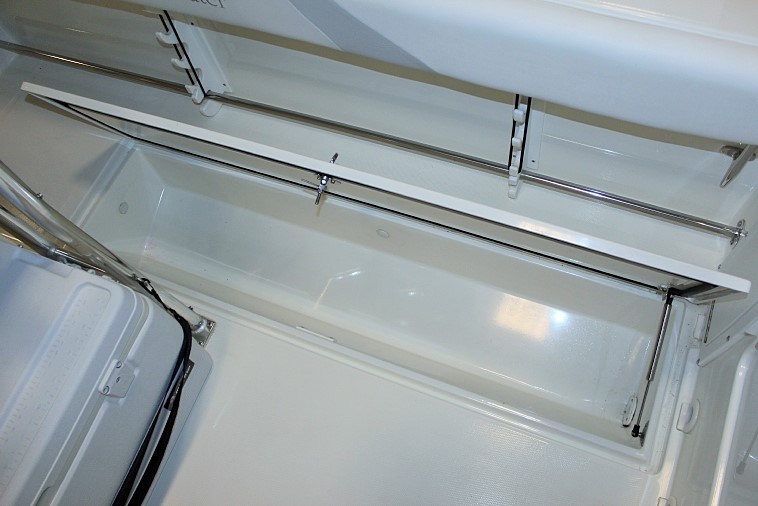

Insulated 180QT In-Floor Fishboxes w/ Pumpout (2)
245CC Anchor System

ANCHOR SYSTEM

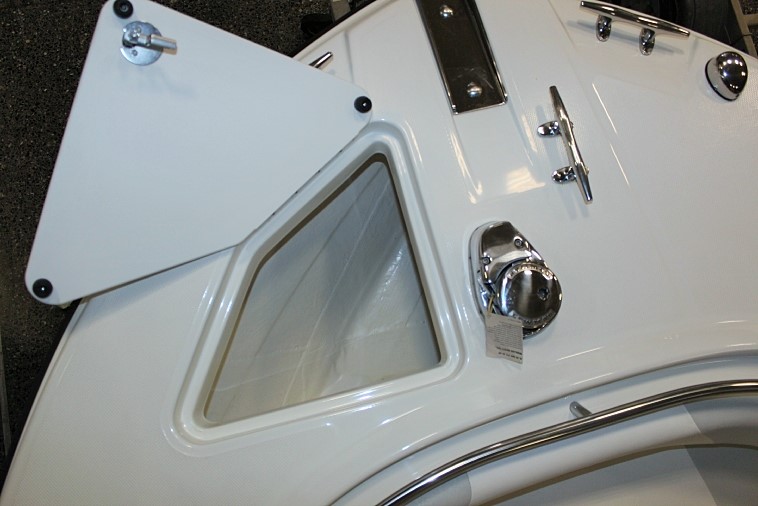

Bow Anchor Locker w/ Overboard Drain
SS Anchor Roller w/ 8" SS Cleat & Anchor Retainer
SS Lewmar V700 Electric Anchor Windlass w/ 200' Rode-15' Chain



PERFORMANCE

YAMAHA TWIN F150

Seconds to Plane    3.81
Horsepower    150 x 2
Displacement    163 CI x 2
Weight (LBS)    475 + 475
Gear Ratio    2.00
Mounting Height    3-3
RPM    MPH    GPH    MPG
1000    5.3    1.5    3.53
1500    7.2    2.6    2.77
2000    9.0    4.2    2.14
2500    12.1    6.5    2.60
3000    21.3    8.2    2.60
3500    27.9    10.1    2.76
4000    33.0    13.1    2.52
4500    38.3    17.0    2.25
5000    43.3    20.8    2.08
5500    48.5    28.5    1.70
6000    51.6    32.5    1.59
Yamaha Twin F150 Performance Graph
YAMAHA TWIN F200

Seconds to Plane    3.75
Horsepower    200 x 2
Displacement    170.8 CI x 2
Weight (LBS)    489 + 489
Gear Ratio    1.86
Mounting Height    3-3
RPM    MPH    GPH    MPG
1000    5.5    1.6    3.41
1500    7.6    2.7    2.81
2000    9.3    4.7    1.97
2500    14.7    6.5    2.26
3000    23.5    8.3    2.83
3500    28.8    10.8    2.66
4000    34.5    14.2    2.44
4500    39.8    18.6    2.14
5000    44.3    25.7    1.72
5500    48.3    35.2    1.37
6000    54.1    39.8    1.36
Yamaha Twin F200 Performance Graph
YAMAHA F250

Seconds to Plane    6.54
Horsepower    250
Displacement    204.6 CI
Weight (LBS)    608
Gear Ratio    2.00
Mounting Height    3
RPM    MPH    GPH    MPG
1000    5.0    1.3    3.85
1500    6.5    1.9    3.42
2000    8.3    3.1    2.70
2500    9.5    4.4    2.15
3000    12.1    6.1    1.99
3500    17.8    7.4    2.42
4000    26.1    9.1    2.87
4500    32.3    12.5    2.58
5000    36.8    14.8    2.48
5500    41.5    17.7    2.34
5950    45.2    21.4    2.12
Yamaha F250 Performance Graph
View full Yamaha Performance data.


OPTIONS

245CC Hull Options
HULL COLORS

Hullside Color Dark w/ White Bottom
COLORS: Midnight Blue, Stars & Stripes Blue, St. Barth's Blue, Cabernet Red, Olive Green
Entire Hull Color Dark
COLORS: Midnight Blue, Stars & Stripes Blue, St. Barth's Blue, Cabernet Red, Olive Green
Hullside Color light w/ White Bottom
COLORS: Pewter, Ice Blue, Sea Foam Green, Fighting Lady Yellow
Entire Hull Color Light
COLORS: Pewter, Ice Blue, Sea Foam Green, Fighting Lady Yellow
245CC Tops & Covers
TOPS & COVERS

Instrument Box for T-Top or Hardtop
White Powdercoating for T-Top or Hardtop
15' Silver Radial Outriggers for T-Top or Hardtop
Radar Plate for T-Top or Hardtop
3-Sided Enclosure for T-Top or Hardtop
COLORS: Toast (default), Platinum, Medium Blue, Navy Blue, Black
Sun Top w/ SS Bows & Hardware
Console/Helm Seat Cover
245CC Engine Package
ENGINE PACKAGE

Yamaha Twin F150 Four Stroke w/ SS Props, Fuel/Water Separator (2) Group 29 Battery & Tray (2), Digital Tachs (2) (w/ Engine Trim, Hours, Trip & Warning Lights), Digital Speedo (w/ Fuel Level, Trip, Time, Volts & Low Fuel/Volt Alarms)
Yamaha Twin F200 Four Stroke w/ Command Link Plus Electronic Controls, Digital Command Link Plus Multi-function Engine Display, Stainless Steel Props, Fuel/Water Separators (2), Group 29 Battery and Box (2)
Yamaha F250 or F300 Four Stroke w/ Command Link Plus Electronic Controls, Digital Command Link Plus Multi-function Engine Display, Stainless Steel Props, Fuel/Water Separators (1), Group 29 Battery and Box (2)
Yamaha Mechanical Pre-rigging Twin Engine
Yamaha Electronic Pre-rigging Twin Engine
Yamaha Electronic Pre-rigging Single Engine
245CC Electronics
ELECTRONICS

Garmin 7607xsv GPS/Map/Sounder
Garmin 7608xsv GPS/Map/Sounder
Garmin 7612xsv GPS/Map/Sounder
Garmin 8212 GPS Sounder/Thru-hull Transducer
Garmin 8215 GPS Sounder/Thru-hull Transducer
Garmin 200 VHF Radio w/ Antenna
Garmin XM Satellite Weather Module
Garmin GMR24xHD2 24" 4kw Radar
Polk Stereo Package w/ USB-Aux Port, Bluetooth & JL Audio 7.7" Speakers (4)
Sirius Satellite Radio for Stereo Package
245CC Accessories
ACCESSORIES

Fiberglass Leaning Post w/ 45GAL Baitwell, Rodholders & Backrest
Folding Removable Stern Seat Backrest
Additional Transom SS Flush Rod Holders (2)
Portable Head w/ Dockside Pumpout
Electric Head w/ Integral Holding Tank, Overboard Discharge & Pumpout

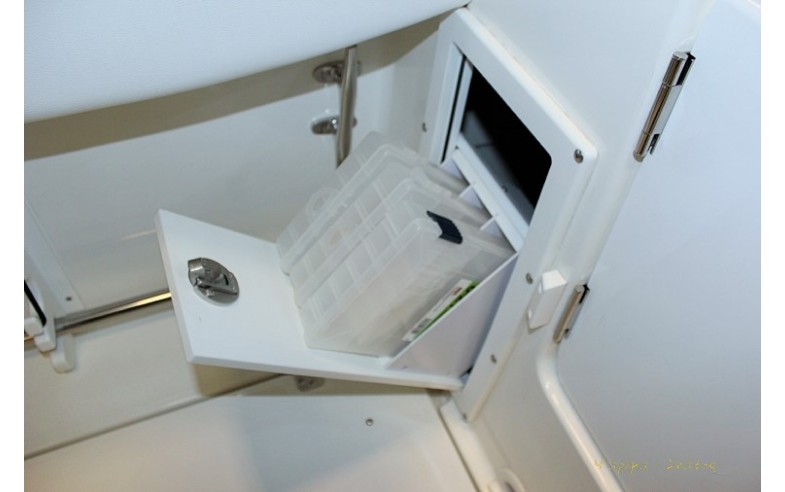

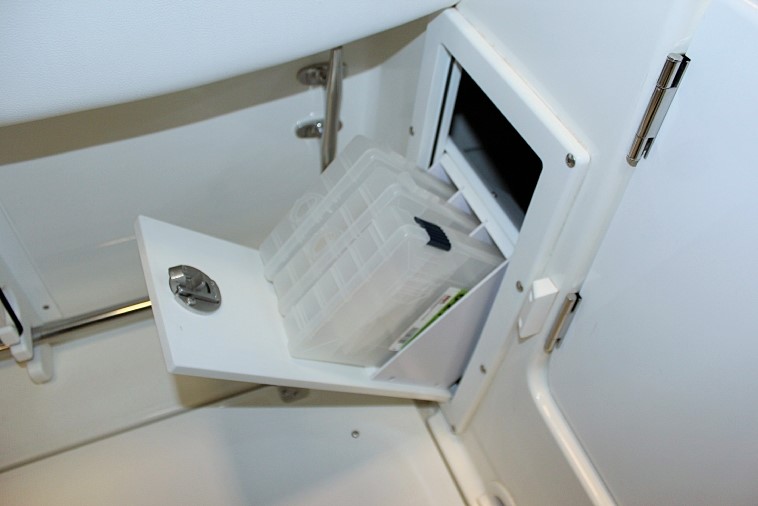

Tackle Box w/ 2 Trays - Gunwale Sides (Port or Starboard)
8" Stainless Steel Flush Pull-Up Cleats
Battery Charger Package w/ 115V Power Inlet (2 Bank)
White Powder-Coating for Leaning Post, Bow Rail & Toe Rails
White Rubrail Insert
Heavy Duty White Rubrail w/ Stainless Steel Insert
Stainless Steel 22LB Anchor w/ Swivel
Hide away Aluminum Ski Pylon
