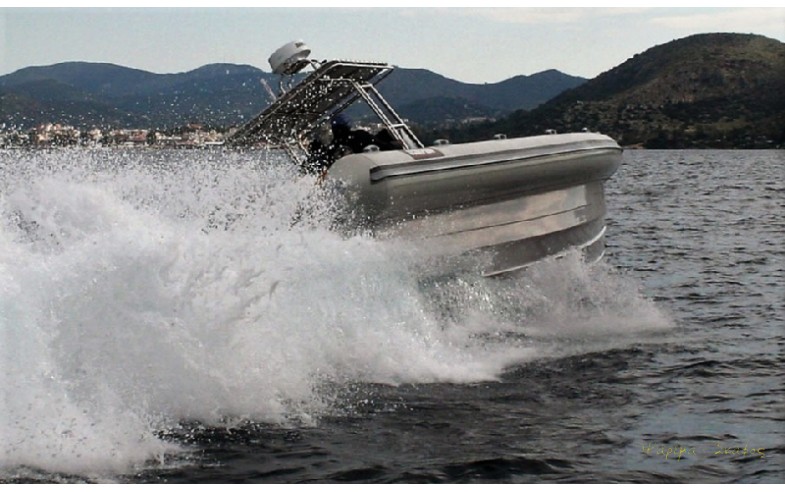

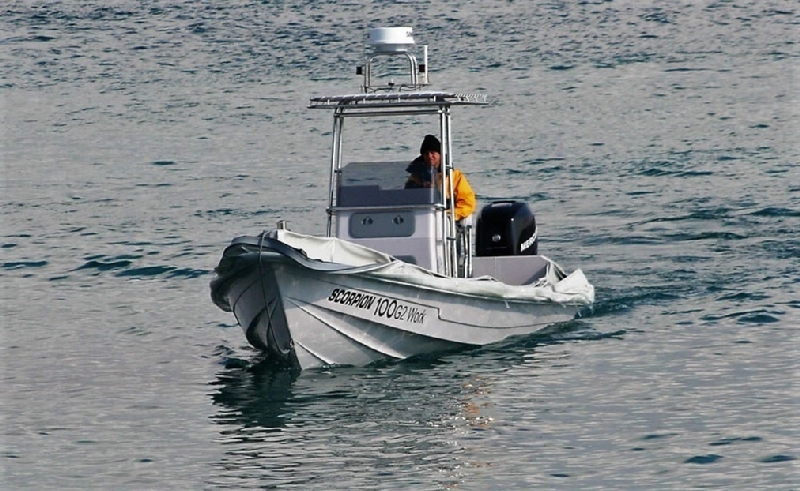

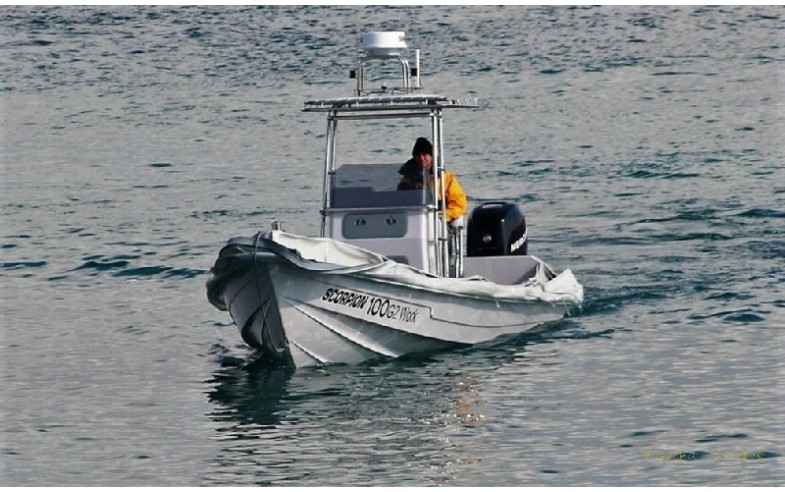

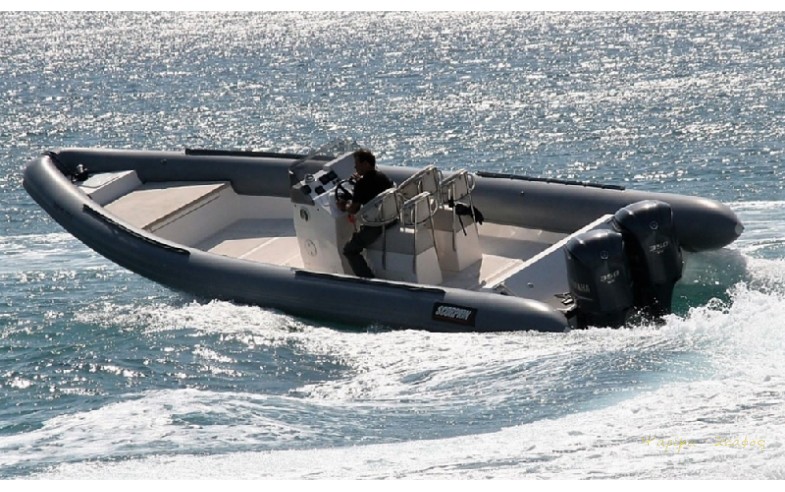

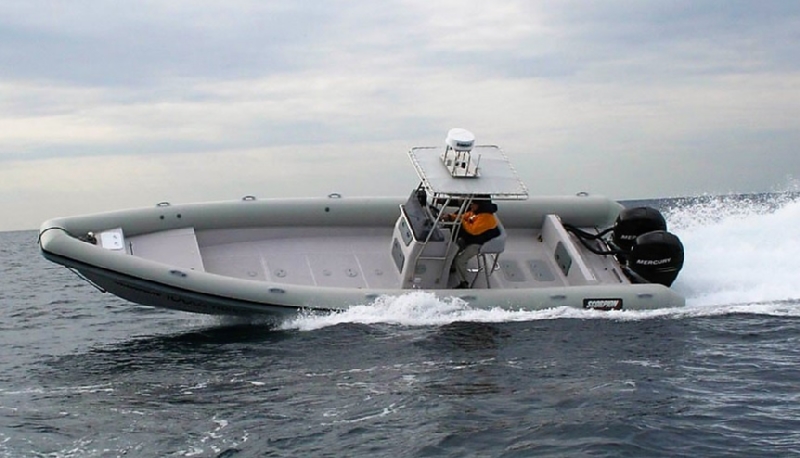

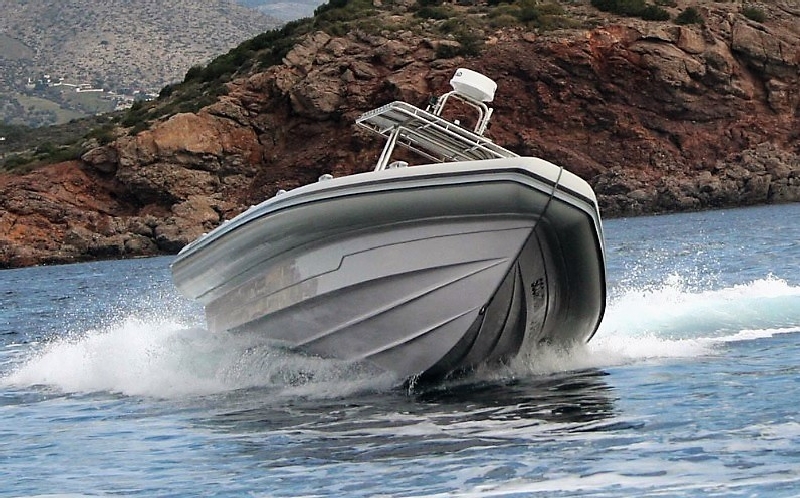

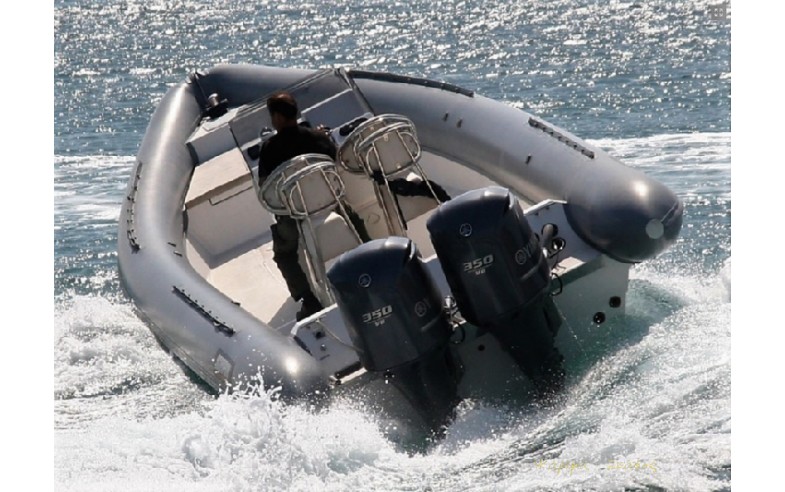

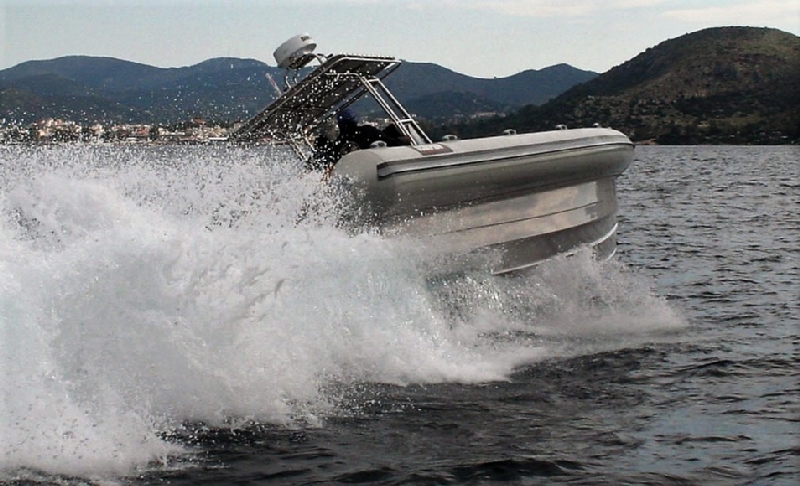

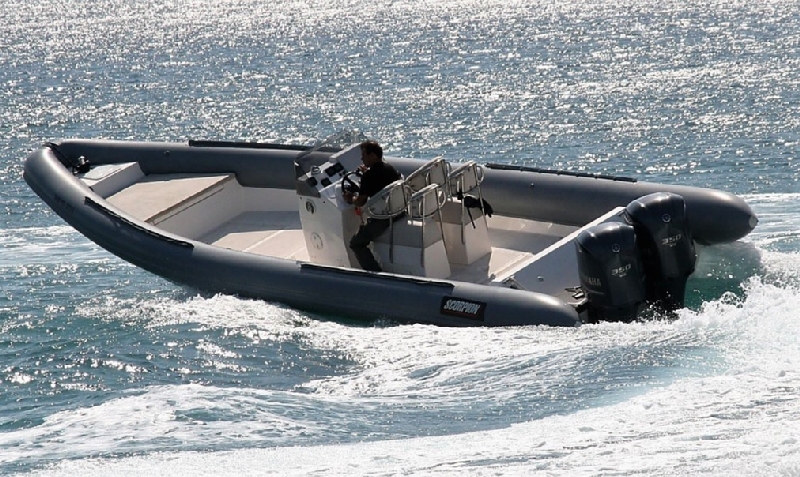

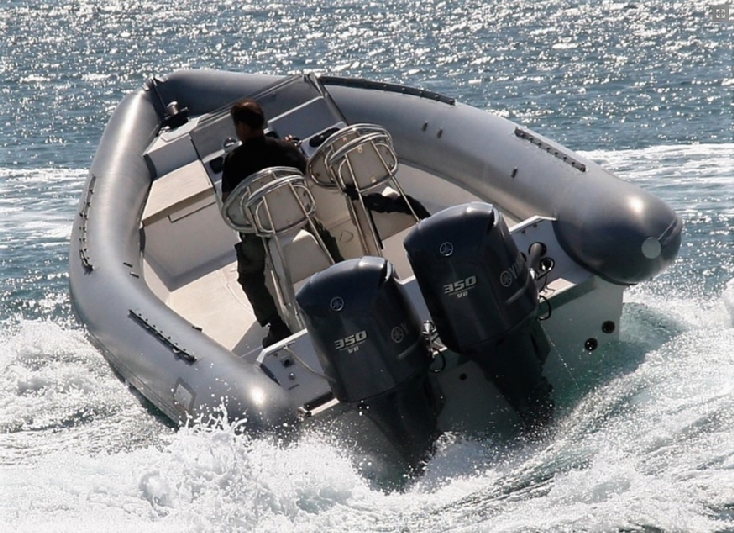

SCORPION 100 Open.

Επιμέλεια : Δημήτρης Καραγεωργίου

Technical





1. Dimentions
Length ( Loa ) 10.00 m
Beam ( Boa ) 3.20 m
Length ( Internal ) 8,80 m
Beam ( Internal ) 2.10 m
Weight ( Dry ) 1.900 Kg


2. Hull Description
Type : Ultra Deep Vee 58 degrees at bow, 24 degrees at stern.
Construction Material :GRP ( Glass Reinforced Polyester )
Method of Construction : Single Skin – Hand Lay Up
4 GRP stringers
7 bulkheads sandwich GRP & Marine Plywood
Transom, sandwich GRP & Marine Plywood


3. Tubes
Chambers : 7
Pressure : 250 mbar
Material : Hypalon/Neopren – Polyester 1670 DTEX


4. Standard Fuel System
Type : Two fuel tanks, “negative grounded”
Total capacity 600 lt
Fuel tank Α 300 lt
Fuel tank Β 300 lt
Construction Material: Inox St 304, 2,0 mm
Method of Construction : Gas Tungsten Arc Welding ( G.T.A.W. )


5. Steering System
Type : Hydraulic Steering System SeaStar
Steering Wheel, Isota Marine


6. Electrical System
Type : DC 12 volts, “two – wire negative grounded”
Batteries : 3 Maintenance free 108 Ah
Batteries switches
8 Garling switches
Navigation lights






Standard



Anchor locker
Huge watertight front locker
Complete electrical system: Two batteries maintenance free – Separate system for engine and service
Fuel capacity 600lt
Hydraulic steering Sea Star
Huge console with front seat
2X double jockeys seats
Watertight stern locker
Swimming ladder



Anchor windlass
Two single Bolster seats with hydraulic absorber instead of standard seat
Four single Bolster seats with hydraulic absorber instead of standard seat
2X triple jockey seats instead of standard seat
Fabrique impression non slip tube fabric ( military gray or anthracite )
Two color tube
Teak Deck
Trim tabs Bennett + instruments
VHF Lowrance LVR-250
R/CD + 4 speakers
Sun tent inox
Console removable Bimini top
Boat cover
Console cover
Marine fridge
